Specifications
Part Number | Platform Length (m) | Platform Width (m) | Platform Height (m) | Approx. Working Height (m) | Toeboards Included | Stabilisers Included |
5600101 | 1.80 | 0.68 | 0.60 | 2.60 | No | No |
5600102 | 1.80 | 0.68 | 0.90 | 2.90 | No | No |
5600103-IN | 1.80 | 0.68 | 1.70 | 3.70 | No | No |
5600103-OUT | 1.80 | 0.68 | 1.70 | 3.70 | No | Yes |
5600104 | 1.80 | 0.68 | 2.50 | 4.50 | Yes | Yes |
5600105 | 1.80 | 0.68 | 3.70 | 5.70 | Yes | Yes |
5600106 | 1.80 | 0.68 | 4.50 | 6.50 | Yes | Yes |
5600107 | 1.80 | 0.68 | 5.80 | 7.80 | Yes | Yes |
5600108 | 1.80 | 0.68 | 6.50 | 8.50 | Yes | Yes |

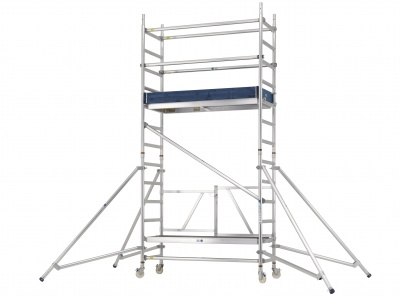

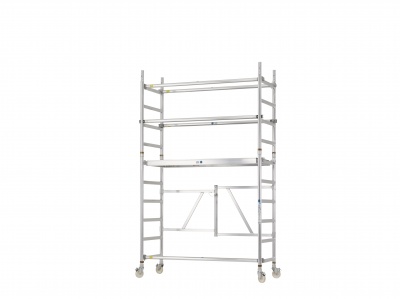

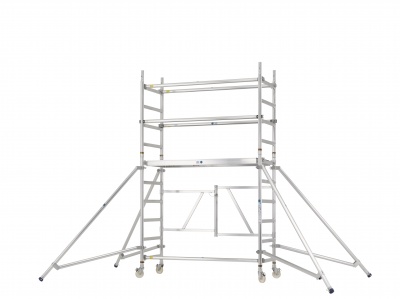

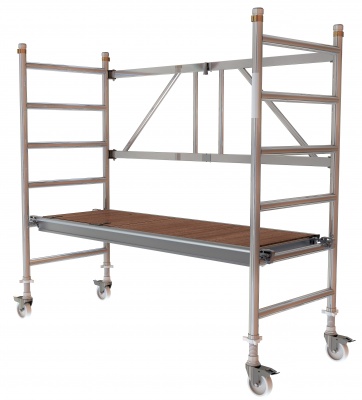

The economical folding scaffold unit with advanced guardrail and two metre platform distance. The Zarges Reachmaster is the robust and easy to use mobile scaffold tower that is suitable for a whole range of jobs.
Whatever it is you need to do, the Zarges Reachmaster is compact enough to be stored and transported with a minimum of space, and quick and safe to erect thanks to its folding base frame and braces that snap into place.
- Scaffold dimensions approx.: 1.80 m x 0.72 m.
- 5 different working heights from 4.5 m to 8.5 m.

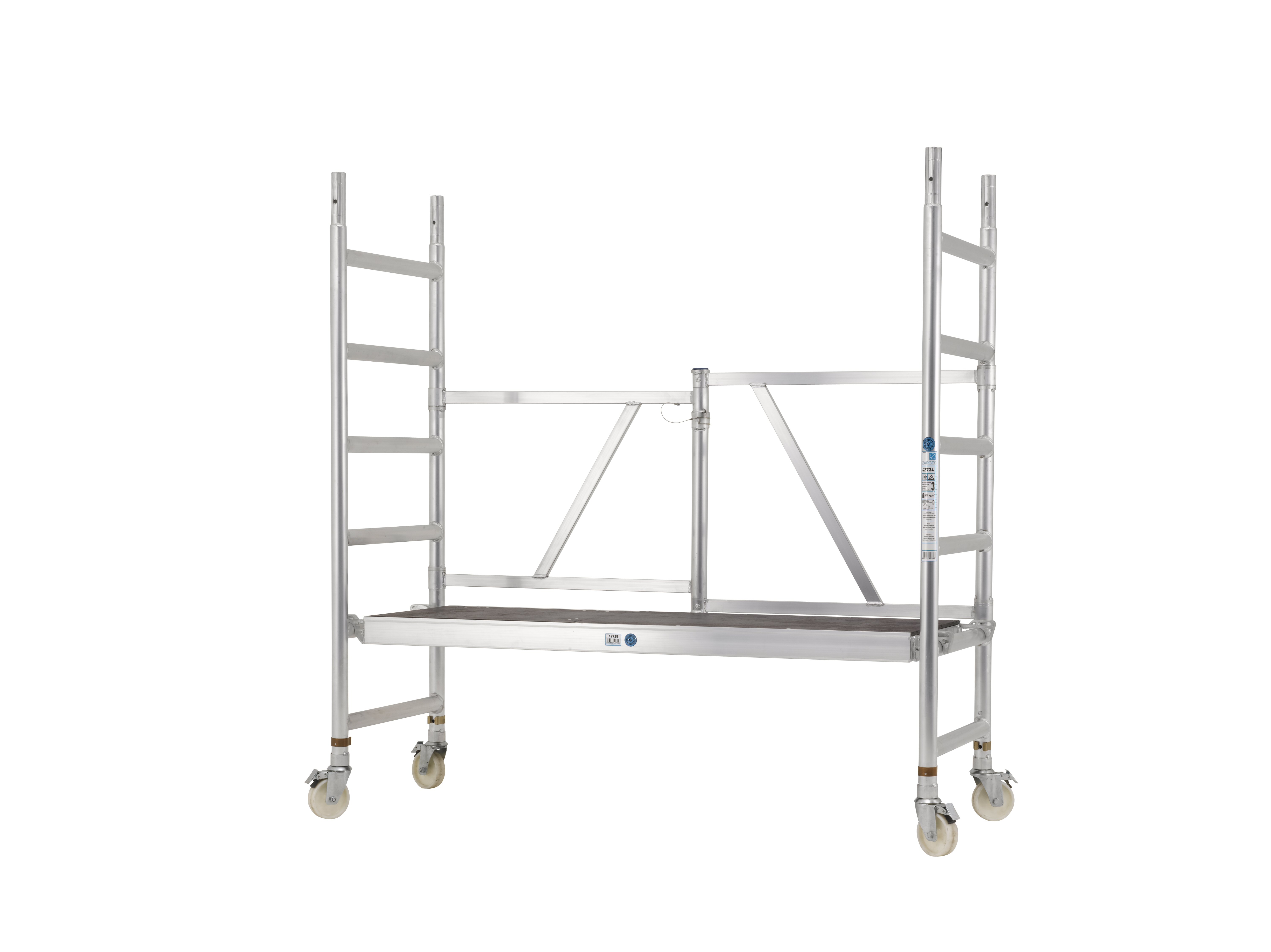

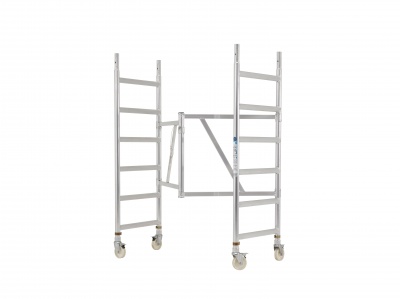

- The lowest folding unit is ideal for rapid erection and dismantling.
- Minimal space requirement during transport and storage (dimensions when folded only 1.75 m × 0.95 m × 0.20 m).
- Scaffolding category 3 (maximum load of 200 kg/m²) according to DIN EN 1004.
- with the 3T method (through the trapdoor)
- Robust – Ø 50 mm stiles and rungs.
Please note - Only the two largest towers (5600107 & 5600108) are supplied with adjustable height castors. All other towers are supplied with non-adjusting castors and are to be used on a level surface.
These adjustable castors can be supplied at an additional cost if required.
THIS PRODUCT HAS NOW BEEN DISCONTINUED AND REPLACED WITH THE ZARGES PAX TOWER.
Part Number
5600101
Brand
Zarges
