Specifications
Part Number | Number of Treads inc. Platform | Closed Length (m) | Platform Height (m) | Max. Working Height (m) | Base Width (m) | Base Projection (m) | Weight (kg) |
GMAX2 | 2 | 1.74 | 0.48 | 2.48 | 0.70 | 0.98 | 12.0 |
GMAX3 | 3 | 2.00 | 0.72 | 2.72 | 0.70 | 1.16 | 13.0 |
GMAX4 | 4 | 2.28 | 0.96 | 2.96 | 0.70/1.43 | 1.34 | 15.5 |
GMAX5 | 5 | 2.54 | 1.20 | 3.20 | 0.70/1.43 | 1.52 | 18.0 |
GMAX6 | 6 | 2.82 | 1.44 | 3.44 | 0.70/1.43 | 1.70 | 19.0 |
GMAX7 | 7 | 3.10 | 1.68 | 3.68 | 0.70/1.43 | 1.88 | 20.0 |

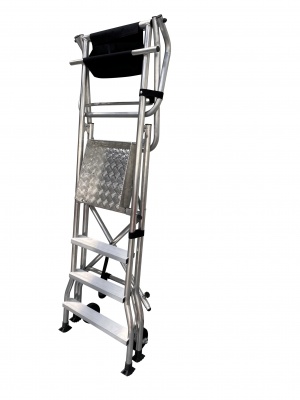

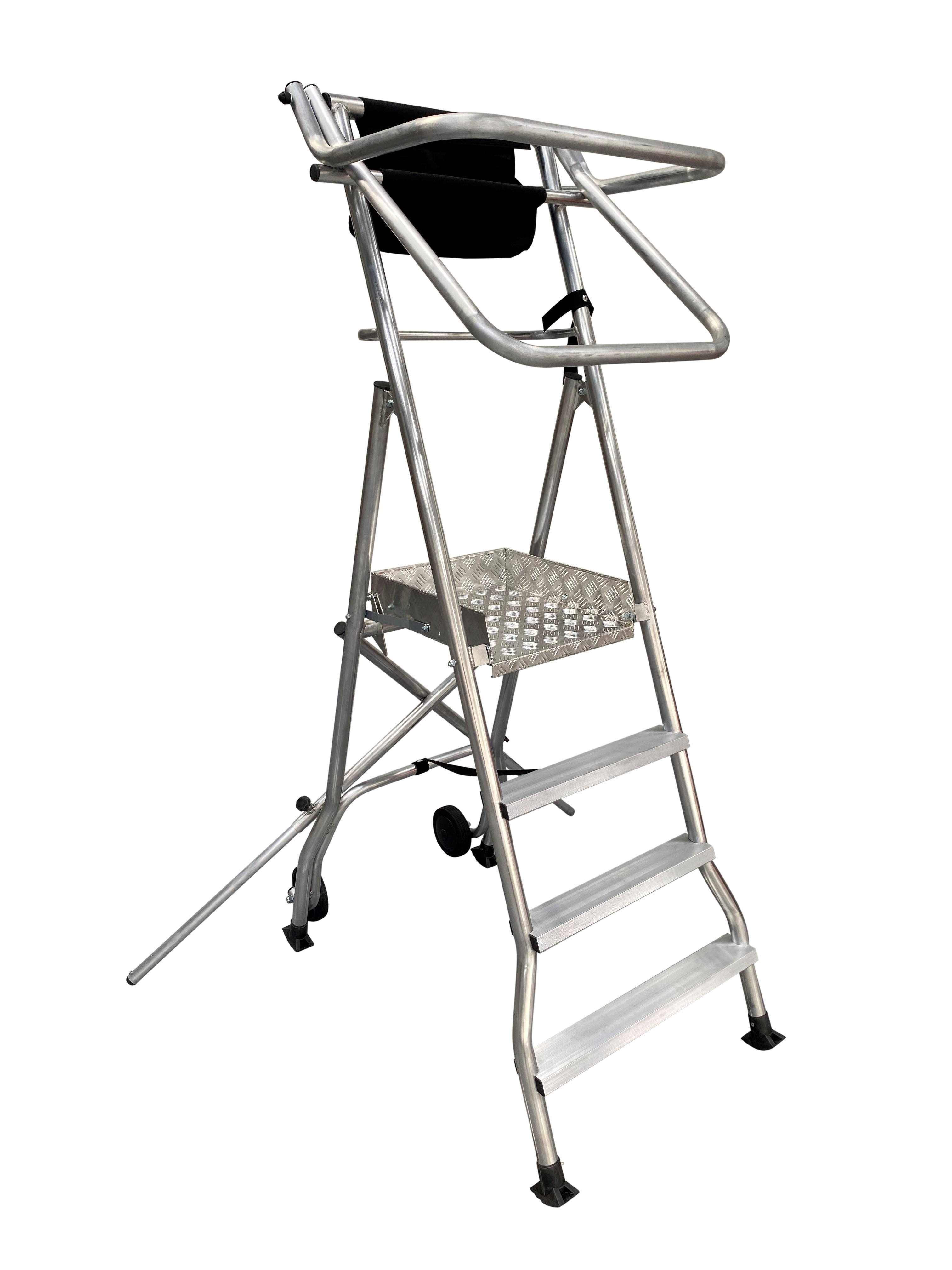

Murdoch Gmax podium step. Platform with overhead type rear barrier. Work platform designed for all work up to 3.68 m height. Ideal for finishing work such as carpentry, dry lining and general maintenance. Safe, enclosed working with generous 410x436mm platform area. Lightweight and easier to manoeuvre. No fatigue when transporting/moving around site.
- Deep tool pocket
- Stabiliser legs with millimetric adjustment (4 Tread models and up)
- 10 cm height toe boards
- Heavy duty platform lock hook engaged when in use
- 150 mm tilt wheels for easy transportation
- Max folded width 700mm and folded depth 300mm
- EN131-7 – 150KG weight loading
- Safe, enclosed working with generous 410x436mm platform area
Part Number
GMAX2
Brand
Murdoch
