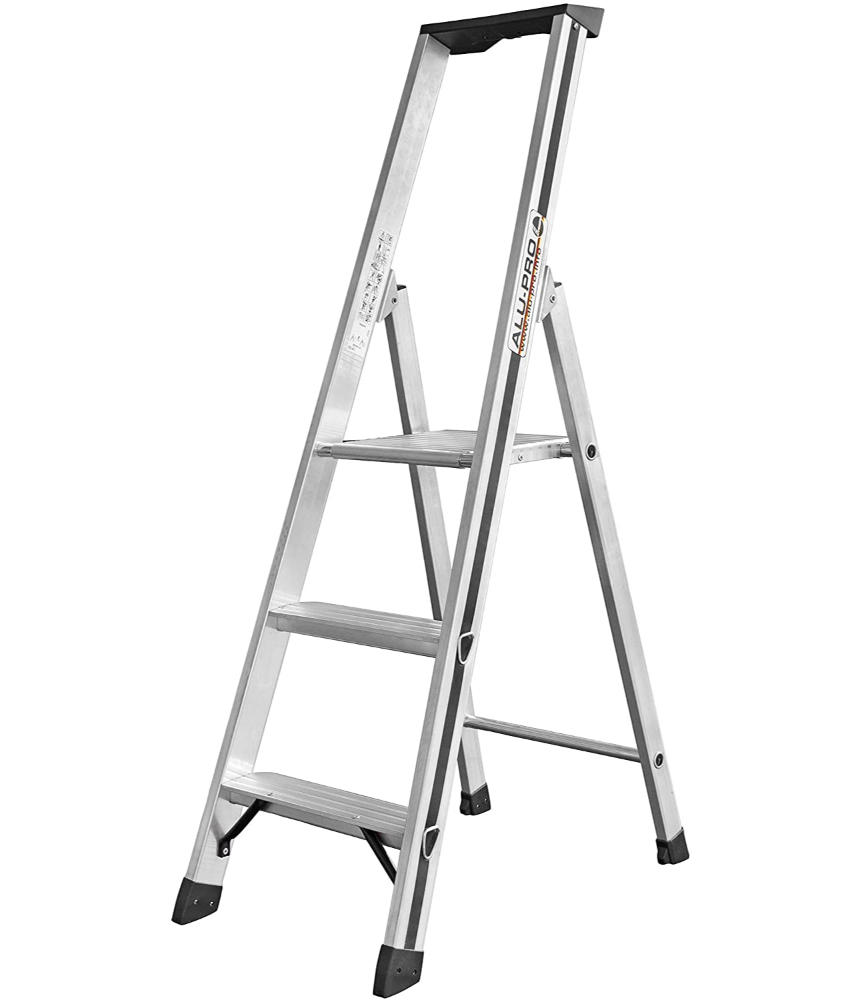

Hymer Black Line Platform Stepladder

Zoom

Our Price: £100.50(£83.75 exc. VAT)

–+

No. Of Treads:

Part Number: 7002603
Brand: Hymer

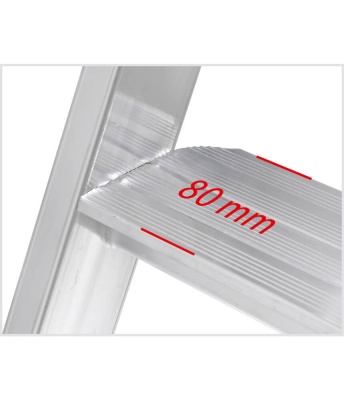

The Hymer Black Line platform stepladder series is a single sided platform step with strong treads via a ‘rung’ connection. Reinforced stile for high stability and longevity. Comes with a spacious plastic tool tray and bucket hook with a load capacity of 10kg. Deep 80mm treads provide comfortable climbing and standing. Manufactured in Germany.

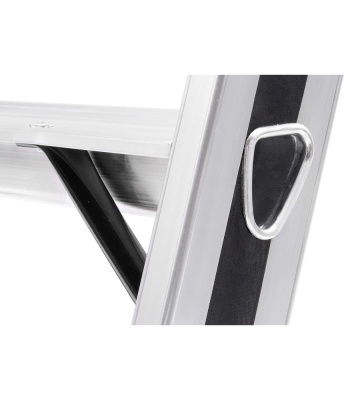

Rigid due to the flanged stile/tread connection
Extra reinforced stile
Retaining straps on 7 and 8 Tread models

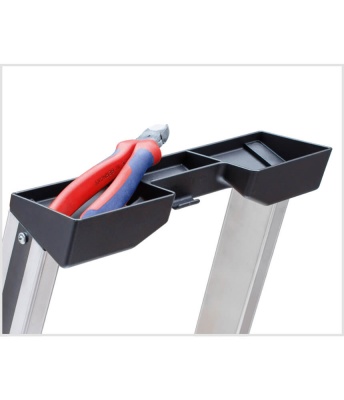

Spacious tool tray and bucket hook with 10kg capacity
EN131 Professional
250mm x 250mm Platform size
55mm stile depth
Made in Germany

Specifications

Part Number	Number of Treads inc. Platform	Platform Height (m)	Approx. Max. Reach Height (m)	Closed Length (m)	Width Top/Bottom (m)	Weight (kg)
7002603	3	0.65	2.65	1.39	0.28/0.42	3.8
7002604	4	0.88	2.88	1.64	0.28/0.44	4.5
7002605	5	1.12	3.12	1.89	0.28/0.47	5.3
7002606	6	1.35	3.35	2.14	0.28/0.50	6.1
7002607	7	1.58	3.58	2.38	0.28/0.52	6.9
7002608	8	1.81	3.81	2.63	0.28/0.55	7.6
